When it comes to creating corners or sweeping curves, SELING truly stands out with easy and efficient solutions:

Outside Corners of 90° can be formed by back-angling the bases and by recessing them.		Inside Corners of 90° can be formed with standard compo- nents.

You can literally build any type of corner of various degrees using SELING walls. Take a look at some sample designs:

Download Inside Corners details: [PDF]
Download Outside Corners details: [PDF]

---

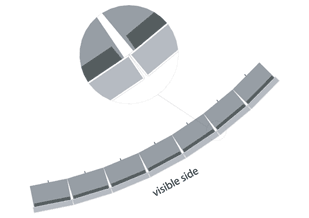

SELING walls have slightly recessed base parts that allow installing a convex radius of certain degrees simply by using standard components:

Minimum Convex Radius

Wall Height H [cm] BASE (estimated) [cm] Minimum Radius [m] 455 240 35,5 430 230 33,8 405 220 32,9 380 200 29,6 355 190 27,9 330 180 26,2 305 160 23,7 280 150 22,0 255 150 22,0 230 140 21,2 205 120 17,8 180 100 14,5 155 90 13,3 130 80 11,6 105 60 8,3 80 50 6,6 55 40 4,9

click wall height for additional info

Convex Radius with back-angled components: [PDF]

---

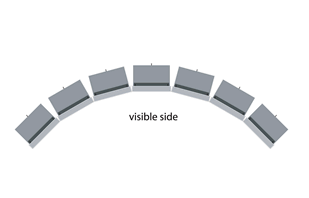

A concave radius of any desired degree can be installed by using standard components:

Concave Radius

Due to its flexibility, CreCast walls can exactly follow any property line with ease to maximize the use of valuable land.
